E-Z Breach® Narrow Gun Port

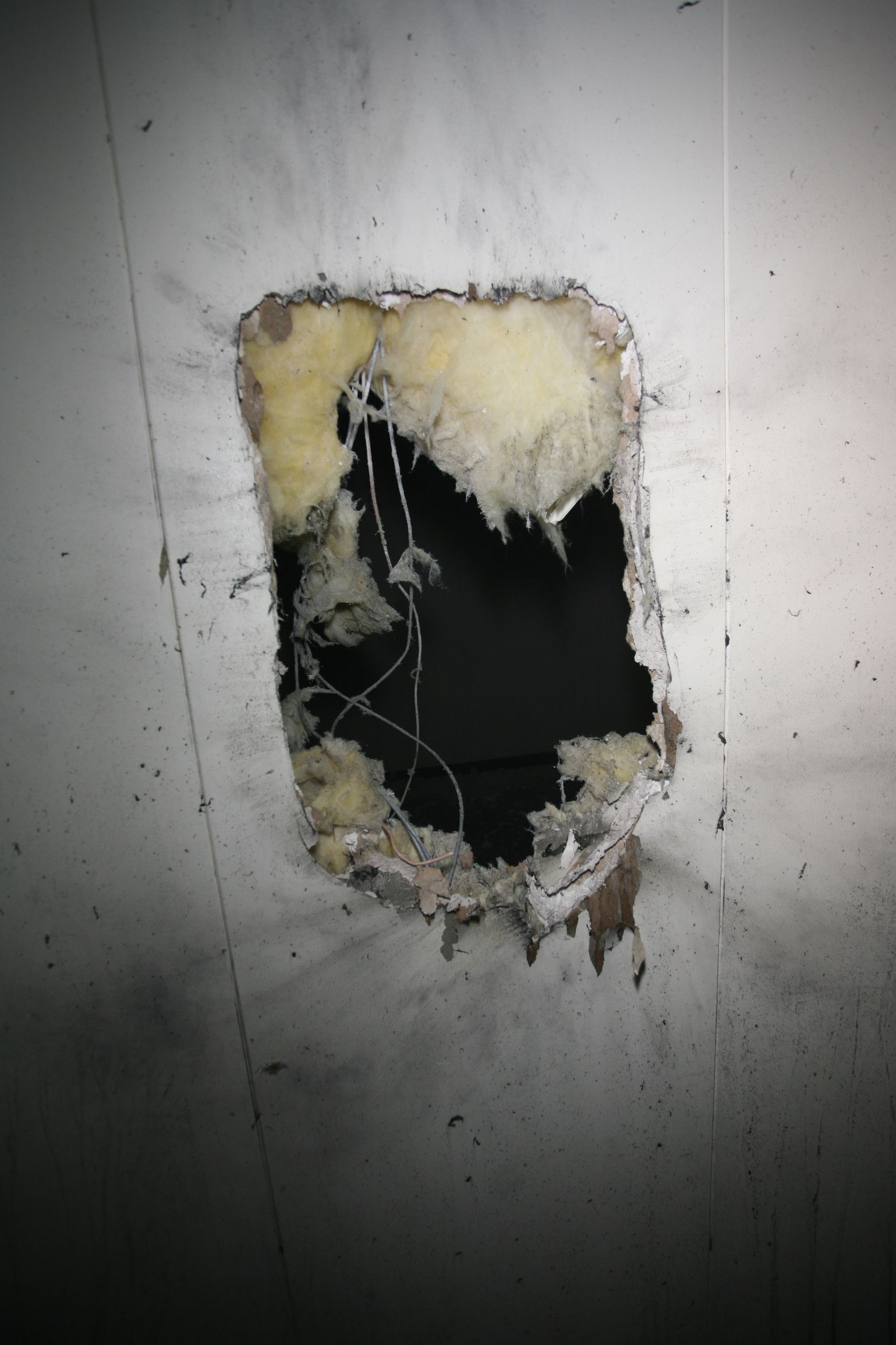

 E-Z BREACH NARROW GUN PORT IS DESIGNED TO BREACH WALLS BETWEEN 16" STUDS.
 |
   |
| Click to enlarge image(s) |

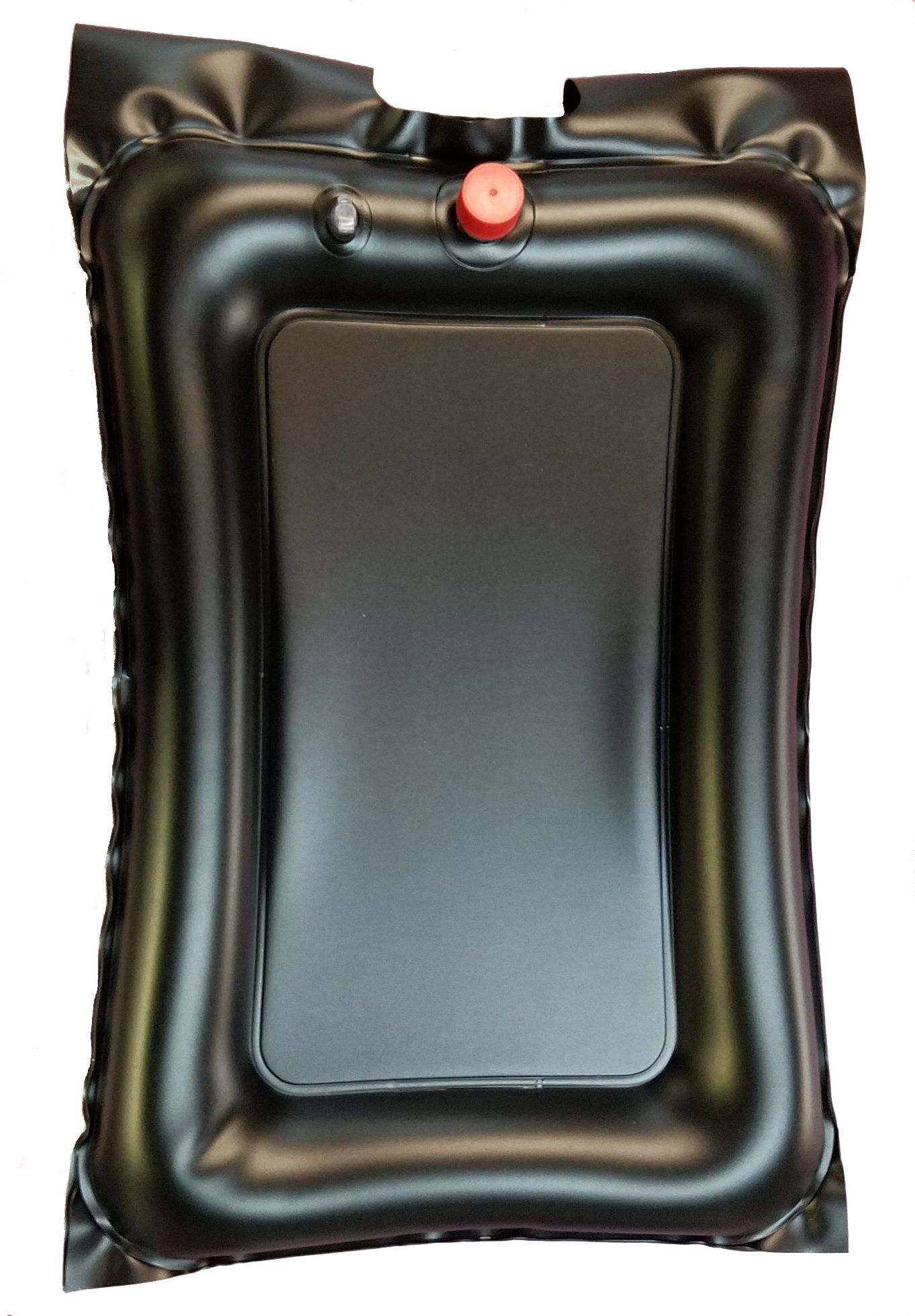

E-Z Breach® Narrow Gun Port is a water tamp charge bladder for use with explosives in forced entry breaching by SWAT teams or other police and military personnel. It is designed to breach a wall specifically between 16" wall studs.
It is extremely effective, convenient to fill, simple to use and economical.
It is manufactured from flexible, foldable heavy-duty 30 mil PVC with a PVC fill valve which requires a tapered nozzle or a tapered nozzle with on-off handle for easy filling. It has a looped top for added convenience in handling and provides another option for placement against a structure. A large, heavy-duty PVC pole holder is located on the upper body of the bladder and is 1 1/4" in diameter.
Charge is taped to the back side of the bladder (side opposite fill valve and pole holder) similar to example shown on the E-Z Breach® Round Gun Port. The bladder is then filled with water using a tapered nozzle or tapered nozzle with on-off handle. Fill valve can be taped closed for added precaution and is recommended if stacking more than one filled bladder.
The water chamber of the E-Z Breach® Narrow Gun Port measures 14" x 21 1/2" at the apex, width and length, when filled with water, holds 2.2 gallons and weighs 20 lbs.
DESIGNED WITH ALL THE FEATURES REQUESTED BY EXPLOSIVE BREACHERS, BOMB SQUADS AND SWAT TEAMS. TESTED BY SAME.
E-Z Breach® should be used only by those personnel formally trained and experienced in explosive entry techniques and procedures.
Specifications |
| |
|
| Flat size, empty | 19" x 29-1/2" (including top loop) | |
|
| Weight, empty | 23 oz or 1.45 lb | |
|
| Weight, filled with water | 20 lbs | |
|
| Water capacity | 2.2 gallons | |
|
| Size, filled | 14" x 21-1/2 " apex, width and length | |
|
| Material type | PVC, aka vinyl, FDA recipe, UV stabilized | |
|
| Material thickness | 30 mil | |
|
| Material color | black | |
|
| Fill valve | Small PVC valve requires a tapered nozzle to fill | |
|
| Pole holder | Heavy-duty PVC angled port with 1-1/4" opening | |
|
Features | Benefits | |
|
| 30 mil PVC | Tough yet flexible, foldable, fillable and/or inflatable, minimal fragmentation | |
|
| PVC fill valve | Small soft PVC valve, minimal fragmentation | |
|
| PVC pole holder | Provides a sturdy structure for pole placement, minimal fragmentation | |
|
| Rectangular shape | Produces gun port | |
|
| Width 14", apex | Perfect for placement between 16" studs, produces a cleaner cut, reduces dust and debris | |
|
| Looped top | Looped top adds convenience in handling and provides option for placement against structure | |
|
| Unique design | Patent pending | |
|
