E-Z Breach® Looped Hinge Bladder
E-Z Breach® Looped Hinge Bladder

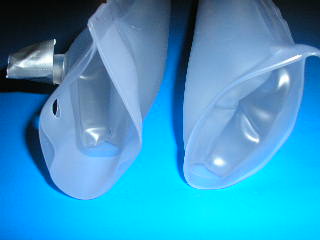

View of hinge bladder from open end
Click to enlarge image(s)
E-Z Breach® Looped Hinge Bladder is a water impulse charge bladder for use with explosives in forced entry breaching by SWAT teams or other police and military personnel. It accepts a variety of explosives and is suitable for a wide range of targets.

E-Z Breach® Looped Hinge Bladder is designed to remove the door at the hinge. It is used primarily along the door hinge but also can be used in the center of a door to deflect the door inward. It is extremely effective when used with the appropriate chage.

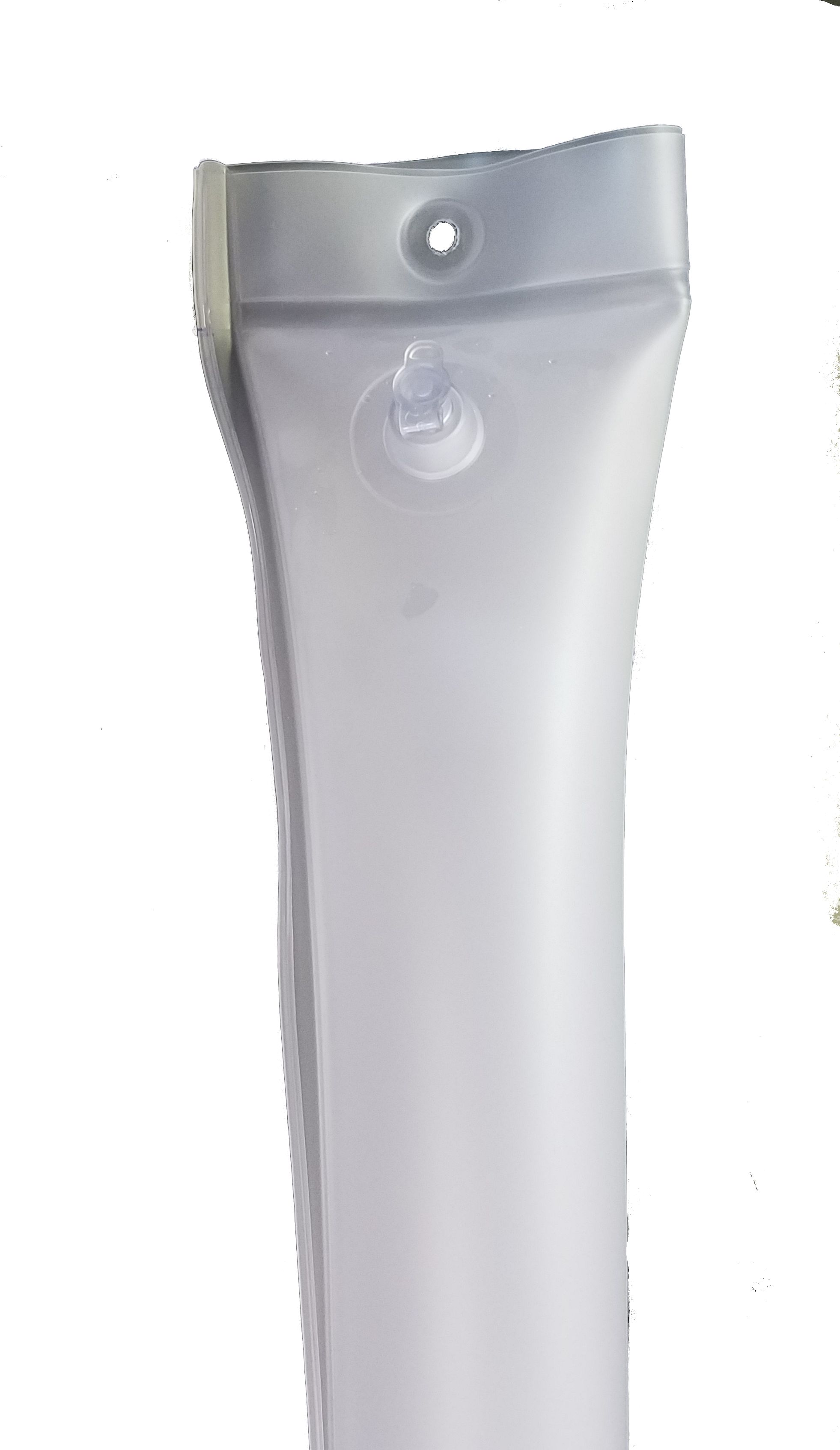

E-Z Breach® Looped Hinge Bladder is a single elongated bladder, 8" x 74" in length, which is folded back on itself and radio-frequency welded down the entire length so that the bladder forms a loop which measures flat 4" x 74". The loop creates an internal opening for insertion of the appropriate charge depending on the target. The bladder is filled with water after the charge is inserted. A tapered nozzle is recommended for easier filling. The bladder has punch out holes at the top which provide an optional means for placement against the door, such as using cord loops and pole or a pole with a slight hooked end. Also, breacher's tape, or double-sided tape, can be applied to the target side of the bladders to secure the bladder to the door. The PVC valve can be taped closed for added security, if needed, and is recommended if storing pre-made charges.

E-Z Breach® Looped Hinge Bladder is manufactured from 20 mil frost clear PVC, aka vinyl, and has a single, small PVC valve for filling. Every part of the bladder is tough, yet flexible and produces minimal fragmentation.

The bladder is very small when folded or rolled and requires minimal storage space, one-third cubic foot per unit, 4"x 4"x3", and it weighs 16 oz.

E-Z Breach® Looped Hinge Bladder improves results delivered by improvised water impulse contact charges and results are consistent. It dramatically reduces preparation and handling time which equates to more efficiency and lower labor cost.

E-Z Breach® Looped Hinge Bladder should only be used by those personnel formally trained and experienced in explosive entry techniques and procedures, such as SWAT teams, military and police.
Size, empty 4" x 74"
Size, filled with water 2½"-3" diameter x 74"
Weight, empty 1 pound
Weight, filled with water 11.75 lbs
Water capacity 1.3 gallons
Material PVC, aka vinyl
Color frost clear
Fill valve Small flexible PVC valve, requires tapered nozzle for filling
Material thickness 20 mil
Features Benefits
20 mil PVC Tough yet flexible, foldable, fillable and/or inflatable, minimal fragmentation
Color Frost clear, almost invisible against the target door
Fill valve Small, flexible PVC valve, requires tapered nozzle for filling. Minimal fragmentation.
Looped design Design creates internal opening for insertion of charge
Punch-out holes in top Holes at top of bladder provides another option for placement against the target door or for pole
Unique design Design is efficient and effective. Patent # US 8,267,013B2
