E-Z Breach® Entry Port
 E-Z BREACH® ENTRY PORT IS DESIGNED TO BREACH WALLS SUFFICIENT FOR A PERSON TO PASS THROUGH.
 |
|
| Click to enlarge image(s) |

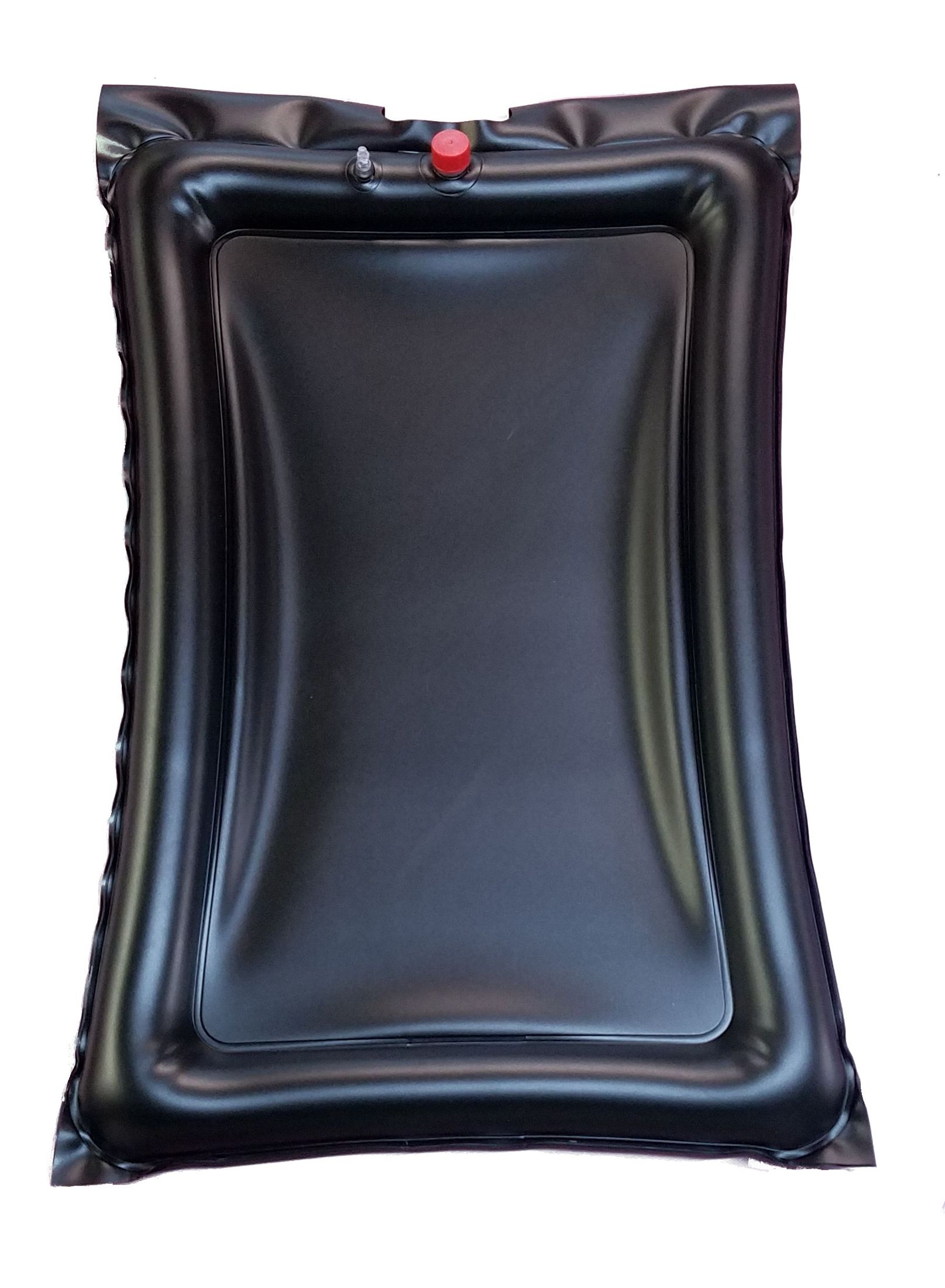

E-Z Breach® Entry Port is a water tamp charge bladder for use with explosives in forced entry breaching by SWAT teams or other police and military personnel. It is designed to breach a wall sufficient for a person to pass through.
It is manufactured from heavy-duty 30 mil PVC, has a looped top for added convenience and ease of handling and provides another option for placement against the target structure. The bladder has a large angled PVC pole holder, 1 1/4" in diameter, and a soft PVC fill valve that requires a tapered nozzle or a tapered nozzle with on-off handle for easy filling. Minimal fragmentation.
E-Z Breach® Entry Port bladder weighs 2.9 lbs empty, 27 1/2 lbs filled and holds 3.3 gallons. Filled size measures 22 1/2" x 34" at the apex, width and length. Overall size is 24" x 36" including looped top.
DESIGNED WITH ALL THE FEATURES REQUESTED BY EXPLOSIVE BREACHERS, BOMB SQUADS AND SWAT TEAMS. TESTED BY SAME.
E-Z Breach® Entry Port should be used only by those personnel formally trained and experienced in explosive entry techniques and procedures.
Specifications |
| |
|
| Flat size, empty | 26 1/2" wide x 42" long including looped top | |
|
| Size, filled with water | 22 1/2" x 34" apex, width and length, 24" x 36" overall size including looped top | |
|
| Weight, empty | 2.9 lbs | |
|
| Weight, filled | 27 1/2 lbs | |
|
| Water capacity | 3.3 gallons | |
|
| Material | PVC, FDA recipe material for potable water, UV stabilized | |
|
| Material thickness | 30 mil | |
|
| Color | Black | |
|
| Fill valve | Small PVC valve which requires a tapered nozzle for easy filling | |
|
| Diameter of water perimeter | 3" | |
|
| PVC pole holder | Heavy-duty PVC angled port, 1 1/4" in diameter | |
|
Features | Benefits | |
|
| 30 mil PVC | Tough yet flexible, foldable, fillable and/or inflatable, minimal fragmentation | |
|
| PVC fill valve | Small fill valve requires tapered nozzle for easy filling, minimal fragmentation | |
|
| FDA recipe PVC | Can be used for drinking water if originally filled from a potable water source | |
|
| Pole holder | Large PVC angled port, 1 1/4" diameter, provides a study structure for pole placement, minimal fragmentation | |
|
| Looped top | Looped top adds convenience in handling and provides another option for placement against a structure | |
|
| Large capacity | Holds 3.3 gallons of water, 27-1/2 lbs | |
|
| Unique design | Patent pending | |
|
